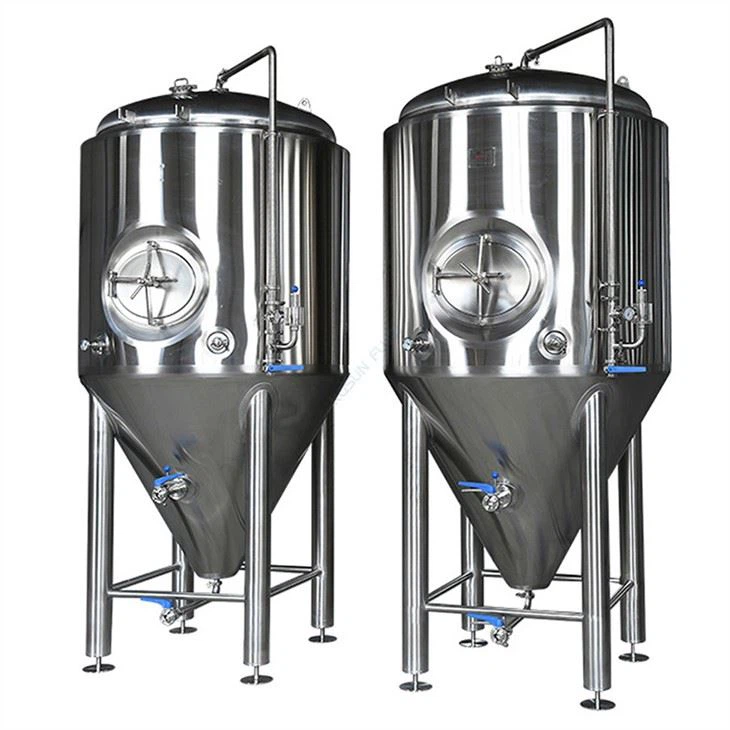

Fermenteur de bière conique en acier inoxydable 10bbl 15bbl

    The craft beer fermentation tank is mainly used to inoculate the yeast after cooling down the wort to provide a suitable environment for the conversion of maltose into alcohol. The beer fermentation tank is equipped with a cooling jacket, which can be used for temperature control, cooperate with the hop dry injection port, CIP tank washing device, sampling valve, wine outlet and sewage outlet, water-sealed mechanical pressure regulating valve, titanium rod inflation port, and beer at the same time Fermentation is controlled by low temperature, so the fermentation tank is equipped with insulation, and it is generally configured for polyurethane foam insulation.

Beer fermentation tank also called conical fermentation tank, Is made of stainless steel 304, come with cooling jacket and PU insulation.

Tank shape: dish top and conical bottom. All Beer fermentation tank with a 20-30 percent Head Space.

 Features of beer tank

1.Shadow less Manway: side manway or top manway

2.360 degree rotating spray ball

3. Lignes CIP

4. Vanne papillon Tri-clamp pour CIP

5. Soupape de décompression/vide

6. Bras de rayonnage rotatif avec vanne papillon

7. Tri-papillon de serrage pour vidange

8. Thermomètre

9. Puits thermométrique

10. Vanne d'échantillonnage

11. Veste de refroidissement Duel Zone

Nous avons des cuves de fermentation de 1 bbl à 60 bbl, de 100 litres à 10000 litres

étiquette à chaud: fermenteur de bière conique en acier inoxydable 10bbl 15bbl, fabricants, sanitaire, acier inoxydable, qualité alimentaire
